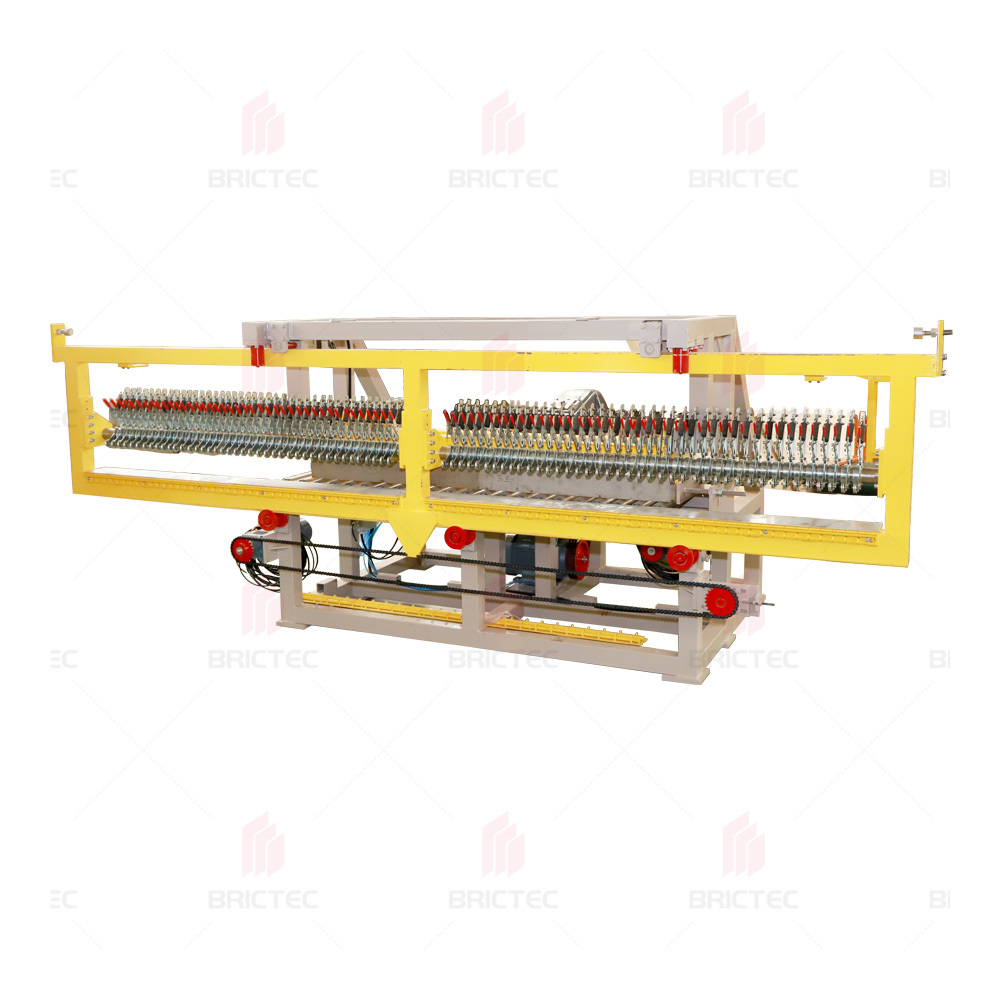

Automatic Twin-Screw Brick Cutter Machine 3 kW 1200kg

Brand Name : Brictec

Model Number : QPJ-I

Place of Origin : China

MOQ : 1

Price : USD24000-32000$

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 20-30 work days

Automatic : Yes

Type : Clay Brick Making Machine

Adjustable Cutting Angle : Yes

Power : 3 kW

Product Type : Cutting Machine

Weight : 1200kg

Condition : New

Method : Cutter

Processing : Brick Cutting Machine

Usage : Cutting bricks for construction projects

Contact Now

1. Equipment Introduction

The twin-screw frame wire-cutter is a wire-cutting device driven by two synchronized ball screws, moving the cutting frame vertically to slice wet clay, shale or coal-gangue bricks to exact length.

Automatic Twin-Screw Brick Cutter Machine 3 kW 1200kg

Automatic Twin-Screw Brick Cutter Machine 3 kW 1200kg

2. Application in Clay Brick Plant
Positioned downstream of the extruder, it converts the continuous clay column into uniform brick blanks before stacking, drying and firing.

Automatic Twin-Screw Brick Cutter Machine 3 kW 1200kg

3. Function
The high-rigidity twin-screw drive ensures all cutting wires move simultaneously at identical speed and position, giving synchronous, distortion-free cuts.

Automatic Twin-Screw Brick Cutter Machine 3 kW 1200kg

4. Comparison with Synchronous Cutter

Item

Twin-Screw Frame

Synchronous Cutter

Drive

Mechanical twin screws

Servo motor + linkage

Wire qty

Up to 20 wires, single break replaceable

Usually fixed set

Wire-break protection

Single break continues running

Requires full stop

Maintenance

Modular quick change

Complex linkage adjustment


Automatic Twin-Screw Brick Cutter Machine 3 kW 1200kg

5. Cutting Advantages
• If one wire breaks, the rest keep working—non-stop production;
• Cutting accuracy ≤ ±1 mm with clean edges;
• Modular frame allows full wire set change in 10 min;
• Wear-resistant screws last ≥30,000 h maintenance-free.

Automatic Twin-Screw Brick Cutter Machine 3 kW 1200kg

6. Key Specifications
• Max cutting width: 1,200 mm
• Cutting frequency: 15–45 cuts/min (VFD adjustable)
• Installed power: 11 kW
• Brick types: solid, perforated, hollow and pavers

Automatic Twin-Screw Brick Cutter Machine 3 kW 1200kg
